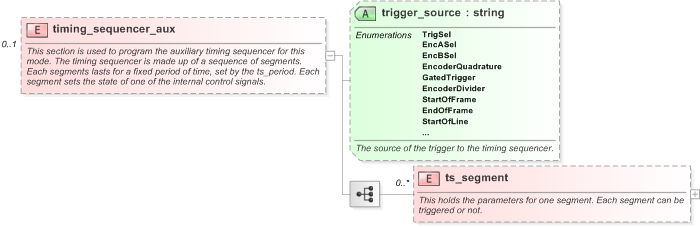

This section is used to program the auxiliary timing sequencer for this mode. The timing sequencer is made up of a sequence of segments.
Each segments lasts for a fixed period of time, set by the ts_period. Each segment sets the state of one of the internal control signals.

<xs:element name="timing_sequencer_aux" minOccurs="0">
    <xs:annotation>
        <xs:documentation>This section is used to program the auxiliary timing sequencer for this mode. The timing sequencer is made up of a sequence of segments.
Each segments lasts for a fixed period of time, set by the ts_period. Each segment sets the state of one of the internal control signals.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ts_segment" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>This holds the parameters for one segment. Each segment can be triggered or not.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="ts_period" type="xs:decimal" minOccurs="0">
                            <xs:annotation>
                                <xs:documentation>This is the duration of this segment in milliseconds.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                        <xs:element name="ts_ct0_state" minOccurs="0">
                            <xs:annotation>
                                <xs:documentation>The is the state of the CT0 output. It must be 0 (low) or 1 (high). </xs:documentation>
                            </xs:annotation>
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedByte">
                                    <xs:enumeration value="0" />
                                    <xs:enumeration value="1" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                        <xs:element name="ts_ct1_state" minOccurs="0">
                            <xs:annotation>
                                <xs:documentation>The is the state of the CT1 output. It must be 0 (low) or 1 (high). </xs:documentation>
                            </xs:annotation>
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedByte">
                                    <xs:enumeration value="0" />
                                    <xs:enumeration value="1" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                        <xs:element name="ts_ct2_state" minOccurs="0">
                            <xs:annotation>
                                <xs:documentation>The is the state of the CT2 output. It must be 0 (low) or 1 (high). </xs:documentation>
                            </xs:annotation>
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedByte">
                                    <xs:enumeration value="0" />
                                    <xs:enumeration value="1" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                        <xs:element name="ts_ct3_state" minOccurs="0">
                            <xs:annotation>
                                <xs:documentation>The is the state of the CT3 output. It must be 0 (low) or 1 (high). </xs:documentation>
                            </xs:annotation>
                            <xs:simpleType>
                                <xs:restriction base="xs:unsignedByte">
                                    <xs:enumeration value="0" />
                                    <xs:enumeration value="1" />
                                </xs:restriction>
                            </xs:simpleType>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="trigger" use="optional">
                        <xs:annotation>
                            <xs:documentation>What part of the trigger signal will cause this segment to execute. Use "NoWait" if you want this segment to automatically execute.</xs:documentation>
                        </xs:annotation>
                        <xs:simpleType>
                            <xs:restriction base="xs:string">
                                <xs:enumeration value="NoWait" />
                                <xs:enumeration value="RisingEdge" />
                                <xs:enumeration value="FallingEdge" />
                                <xs:enumeration value="High" />
                                <xs:enumeration value="Low" />
                                <xs:enumeration value="EitherEdge" />
                            </xs:restriction>
                        </xs:simpleType>
                    </xs:attribute>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="trigger_source" use="optional">
            <xs:annotation>
                <xs:documentation>The source of the trigger to the timing sequencer.</xs:documentation>
                <xs:appinfo>order:0</xs:appinfo>
            </xs:annotation>
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:enumeration value="TrigSel" />
                    <xs:enumeration value="EncASel" />
                    <xs:enumeration value="EncBSel" />
                    <xs:enumeration value="EncoderQuadrature" />
                    <xs:enumeration value="GatedTrigger" />
                    <xs:enumeration value="EncoderDivider" />
                    <xs:enumeration value="StartOfFrame" />
                    <xs:enumeration value="EndOfFrame" />
                    <xs:enumeration value="StartOfLine" />
                    <xs:enumeration value="EndOfLine" />
                    <xs:enumeration value="FVALRisingEdge" />
                    <xs:enumeration value="FVALFallingEdge" />
                    <xs:enumeration value="LVALRisingEdge" />
                    <xs:enumeration value="LVALFallingEdge" />
                </xs:restriction>
            </xs:simpleType>
        </xs:attribute>
    </xs:complexType>
</xs:element>
