<xs:element name="mode_roi" minOccurs="0">
<xs:annotation>
<xs:documentation>If this mode acquires a smaller resolution image than the camera puts out, this section can be used to specify the ROI.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:all>
<xs:element name="format" type="xs:string" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>This node describes the Camera Link output tap format for this mode. This node should be in the standard CL tap format syntax:
[ZoneX]X[TapX][ExtX]-[ZoneY]Y[TapY][ExtY]
Optionally this node can be set to "Custom", in which case the node "manual_taps" must be filled out.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="xsize" type="xs:unsignedInt" minOccurs="0">
<xs:annotation>
<xs:documentation>Width of the ROI in pixels.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="ysize" type="xs:unsignedInt" minOccurs="0">
<xs:annotation>
<xs:documentation>Height of this ROI in lines.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="xoffset" type="xs:unsignedInt" minOccurs="0">
<xs:annotation>
<xs:documentation>X-Offset from the first pixel in the frame. Units are pixels.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="yoffset" type="xs:unsignedInt" minOccurs="0">
<xs:annotation>
<xs:documentation>Y-Offset from the first line in the image. Units are lines.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="bitdepth" minOccurs="0">
<xs:annotation>
<xs:documentation>This can be used to specify the pixel bit depth if this mode uses a different depth than the default.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:unsignedByte">
<xs:attribute name="packed" use="optional">
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="no" />
<xs:enumeration value="yes" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="bitdepth_option" use="optional">
<xs:annotation>
<xs:documentation>Normal - Normal
RGBSwap - for RGB color cameras, pixels are DMAed BGR
FormatIgnore - Use when the tap format refers to bytes and not pixels
FormatIgnoreRGBSwap - combindation of the the two above</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="Normal" />
<xs:enumeration value="RGBSwap" />
<xs:enumeration value="FormatIgnore" />
<xs:enumeration value="FormatIgnoreRGBSwap" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="manual_taps" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>This can be use to manually program the CL front end for unusual tap formats.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="tap" minOccurs="1" maxOccurs="10">
<xs:complexType>
<xs:sequence>
<xs:element name="start" type="xs:string" minOccurs="1" maxOccurs="1">
<xs:annotation>
<xs:documentation>Tap number (0 - 10) to acquire.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="step" type="xs:string" minOccurs="1" maxOccurs="1">
<xs:annotation>
<xs:documentation>Step to next sequence.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="cam_line_width" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>Used when: 1. camera line width is not a multiple of 16-bytes, 2. subwindowing segmented camera, 3. modes where there are vertical taps (e.g. 2XE-2YE)</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:unsignedInt">
<xs:attribute name="use" use="optional">
<xs:annotation>
<xs:documentation>Set to PixelRouterAndAcquisitionEngine if the board should program the Acquisition Engine with cam_line_width (instead of x_size). This is mainly used with tap formats that have more than one vertical tap.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="PixelRouter" />
<xs:enumeration value="PixelRouterAndAcquisitionEngine" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="cam_frame_height" minOccurs="0" maxOccurs="1">
<xs:annotation>
<xs:documentation>Used when where there are vertical taps (e.g. 2XE-2YE)</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:unsignedInt">
<xs:attribute name="use" use="optional">
<xs:annotation>
<xs:documentation>Set to PixelRouterAndAcquisitionEngine if the board should program the Acquisition Engine with cam_line_width (instead of x_size). This is mainly used with tap formats that have more than one vertical tap.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="PixelRouter" />
<xs:enumeration value="PixelRouterAndAcquisitionEngine" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:all>
</xs:complexType>
</xs:element>
|

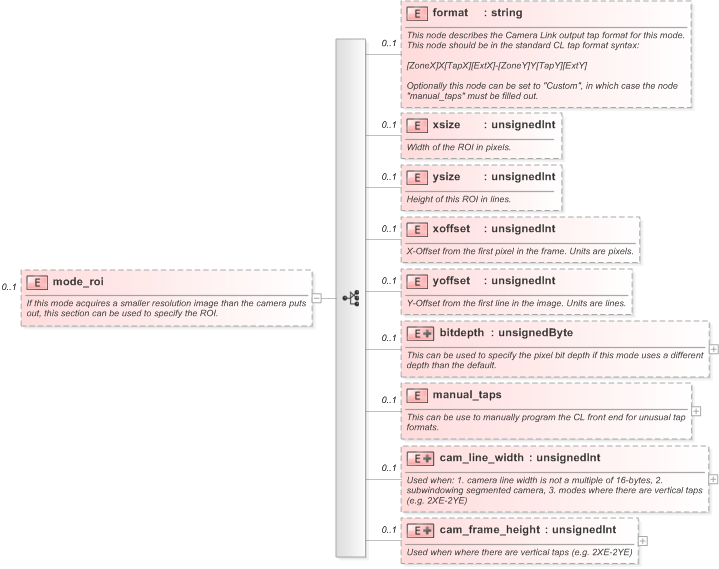

XSD Schema Diagram:
